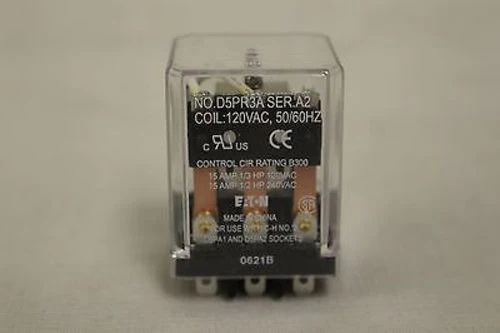

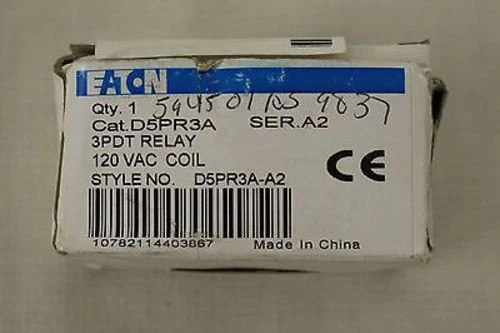

Electromagnetic Relay, NSN: 5945-01-105-9837, P/N:17831, New!
Electromagnetic Relay
NSN: 5945-01-105-9837
P/N:17831
Overall Length: Â 2.220 inches nominal
Overall Width: Â 1.530 inches nominal
Environmental Protection: Â Dust tight
Frequency in Hertz: Â 50.0 minimum and 60.0 maximum
Coil Quantity: Â 1
Mounting Facility Type and Quantity: Â 1 plug-in terminal single mounting facility

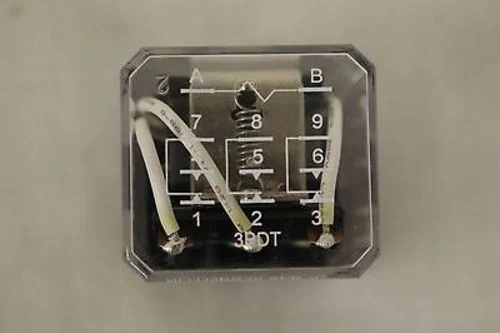

Pile-up Main Contact Form Arrangement: Â 3C
Nominal Operating Current Rating and Type: Â 30.0 amperes ac single winding
Operating Voltage Rating and Type at Specified Temp: Â 120.0 volts ac nonstandard temp single winding
Minimum Differential Electrical Operating Rating: Â 1.5 watts
Main Contact Load Current Rating at Maximum Rated Voltage: Â 15.0 amperes ac inductive load
Main Contact Maximum Voltage Rating in Volts: Â 240.0 ac
Condition: New, has been in storage.
